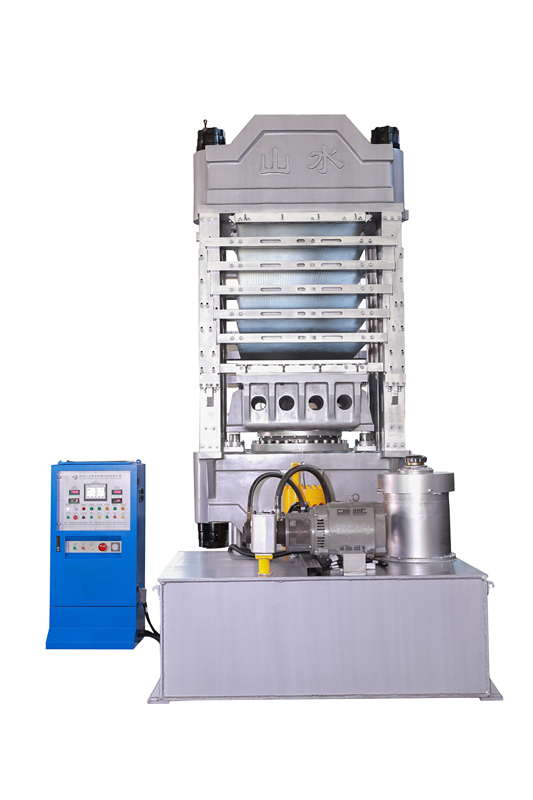

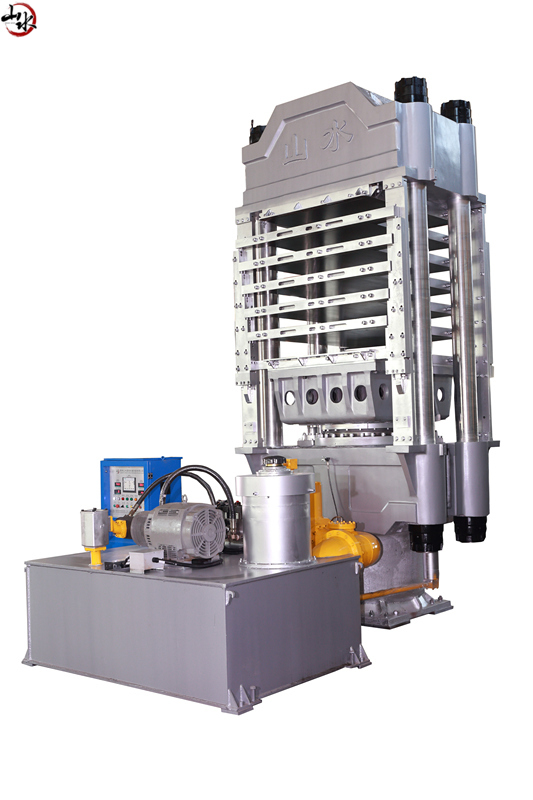

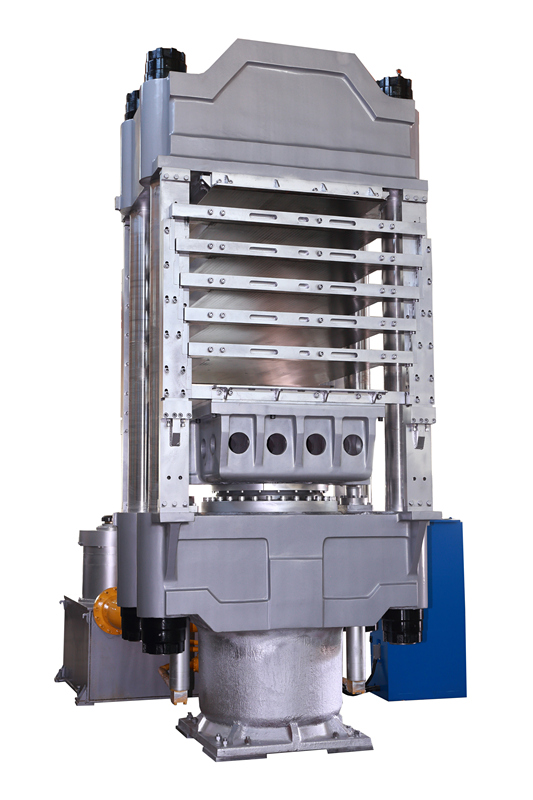

Hydraulic Press Machine
?Product Usage
Foaming of EVA, PE, PVC, SBR and other materials.Such as shoe materials, floor mats, sports protective materials, beach soles, insulation materials, etc.
?Features
1、Strong rigidity and small deformation
2、good pressure, high back pressure
3、open the mold fast
4、It has the function of opening and releasing pressure, which can meet the technological requirements of producing high, medium and low grade products.
5、the special structure of the hot plate design, heating temperature is uniform.
?Product parameter
額定壓力 Rated pressure | 1600T | 2000T | 2300T | 2800T | 3000T |
柱塞直徑 Plunger diameter | 1020mm | 1120mm | 1020mm | 1120mm | 1120mm |
幅面規格 Size of Plate | 2000×1500mm 2200×1500mm | 2000×1500mm 2200×1500mm | 2400×1500mm 2600×1500mm | 2400×1500mm 2600×1500mm | 2400×1600mm 2600×1600mm |
層數 Layer number | 6 | 6 | 6 | 6 | 6 |
間距 Daylight between Plates | 180mm | 185mm 225mm 260mm | 180mm | 195mm | 195mm |
柱內距 Open file | 2000mm | 2000mm | 2000mm | 2000mm | 2500mm |
總功率 Total Power | 22KW | 30KW | 30KW | 37KW | 37KW |
The above machines are equipped with auxiliary cylinders for lifting and lowering, with fast closing speed, low power consumption and exhaust function
額定壓力 Rated pressure | 350T | 600T | 900T | 1100T | 1350T |
柱塞直徑 Plunger diameter | 450mm | 610mm | 762mm | 838mm | 915mm |
幅面規格 Size of Plate | 1200×900mm | 1350×1100mm | 1500×1300mm 1600×1300mm | 1500×1300mm 1600×1300mm | 1700×1400mm 1800×1400mm |
層數 Layer number | 4 | 5-6 | 5-6 | 6 | 6 |
間距 Daylight between Plates | 150mm | 5×160mm 6×140mm | 5×180mm 6×150mm | 160mm | 180mm |
柱內距 Open file | 1100mm | 1330mm | 1600mm | 1600mm | 1850mm |
總功率 Total Power | 7.5KW | 15KW | 18.5KW | 18.5KW | 22KW |
|
