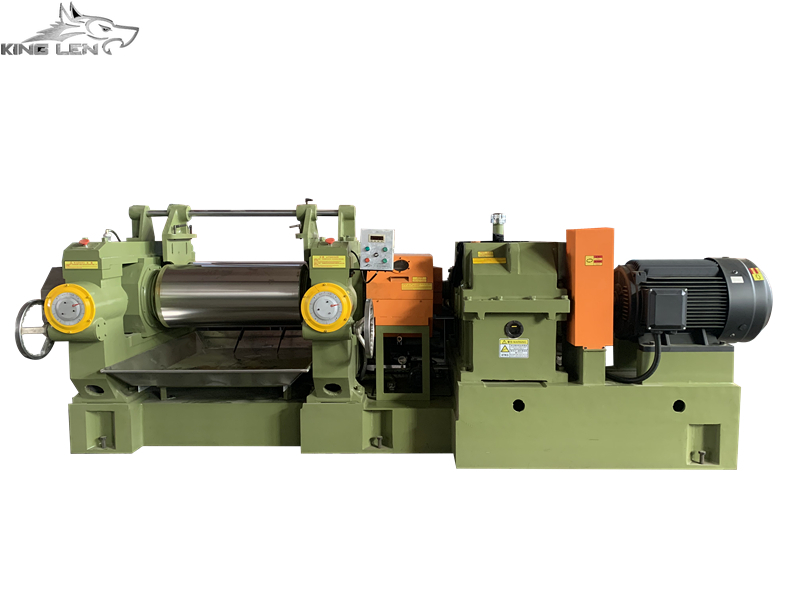

Open mill
Mainly used in plastic and rubber plastic and mixing.
1. The roller material is vanadium-titanium alloy chilled cast iron, the surface is hard and wearable, and the roller structure is heated or cooled by drilling or hollowing to make the roller surface temperature uniform;
2. Hard surface reducer for transmission system, compact structure, low noise and high efficiency;
3, The roller adopts self-aligning bearing, low energy consumption, convenient maintenance, long service life;
4. The machine is equipped with hydraulic and electric power reverse braking device. When an emergency occurs, press the switch and the machine will immediately brake or reverse, which is safe and reliable.
5. The lubrication system adopts integrated circulation lubrication to reduce oil leakage.
機型 Model | X（S）K-14 | X（S）K-16 | X（S）K -18 | X（S）K -22 | X（S）K -24 | X（S）K -26 |
輥徑×長度 Roll diameter×length | 356×916 | 408×1067 | 458×1219 | 560×1524 | 610×1830 | 660×2130 |
主電機 Main motor | 37KW.6P | 45KW.6P | 55KW.6P | 90KW.6P | 160KW.6P | 220KW.6P |
前輥線速 Front roll line speed | 20 | 23.8 | 26.6 | 31.6 | 自由調整 | 自由調整 |
前輥轉速 Front roll speed | 17.9 | 18.6 | 18.6 | 18 | ||
前后輥速比 Front roll ratio | 1：1.22 | 1：1.17 | 1：1.17 | 1：1.2 | ||
減速機速比 Reducer Ratio | 1：45 | 1：45 | 1：45 | 1：45 | ||
機械重量 Mechanical Weight | 7000KG | 9850KG | 12500KG | 17000KG | 25000KG | 32000KG |
外型尺寸 Size(mm) | 4200×1340×1450 | 4850×1730×1620 | 5100×1880×1740 | 6010×2010×1800 | 7240×2400×2200 | 7780×2720×2200 |
自動翻膠機尺寸 Size of automatic tuming machine | 4850×1730×2430 | 5100×1880×2430 | 6010×2010×2450 | 7240×2400×2880 | 7780×2720×2880 |
|
